Connect MCP clients to AgentPMT with hosted Streamable HTTPS or the local STDIO fallback.

Connection

AgentPMT exposes one MCP server for your Agent Group. Use the hosted Streamable HTTPS endpoint when your client supports remote MCP. Use the local STDIO router when your client requires a command-based MCP server.

The Bearer token belongs to one Agent Group. The tools, credentials, spending caps, and activity log for that group define what the connected agent can do.

Prerequisites

Create or choose an Agent Group

In the dashboard, open Control Center -> Agent Groups. Add the tools and workflows this agent may use, bind required credentials, and set spend controls.

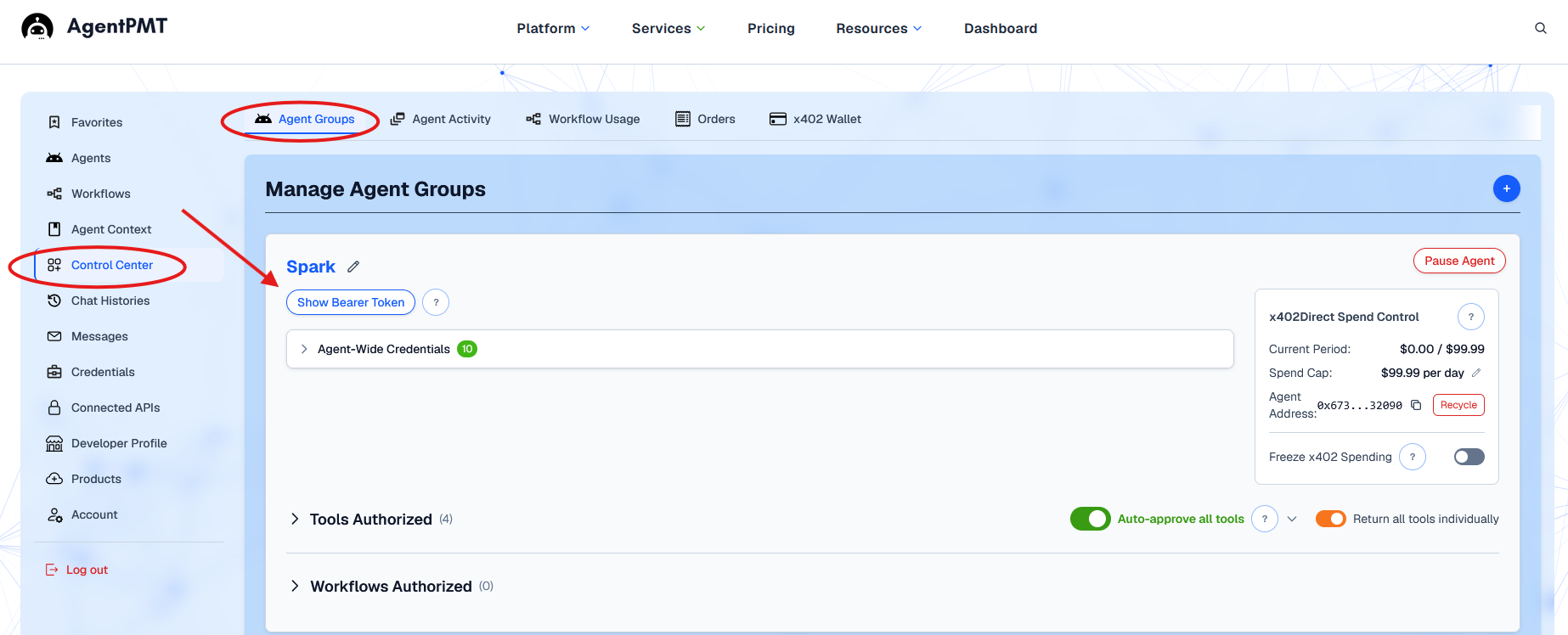

Copy the Bearer token

Click Show Bearer Token on the group card. Treat the token like a password; it authorizes every MCP call for that group.

Choose a transport

Prefer hosted Streamable HTTPS for remote-MCP clients. Choose local STDIO only when the client needs a local command.

Hosted Streamable HTTPS Endpoint

Endpoint:  https://api.agentpmt.com/mcp
Transport: Streamable HTTP over HTTPS
Auth:      Authorization: Bearer <AGENTPMT_BEARER_TOKEN>

Hosted MCP does not require a local package. Your client connects directly to AgentPMT over HTTPS, sends the Bearer token in config or a secret field, and receives the current tool catalog for the agent group.

Complete Hosted Config Examples

Use this generic shape for MCP clients that accept remote Streamable HTTP servers in a config file:

{
  "mcpServers": {
    "agentpmt": {
      "type": "streamable-http",
      "url": "https://api.agentpmt.com/mcp",
      "headers": {
        "Authorization": "Bearer <AGENTPMT_BEARER_TOKEN>",
        "x-instance-metadata": "{\"client\":\"generic-mcp\",\"platform\":\"remote\"}"
      }
    }
  }
}

x-instance-metadata is optional. When your client supports custom headers, use it to identify the client and platform in activity logs.

If your editor build exposes a remote MCP server option, use the hosted config shape above and set:

URL: https://api.agentpmt.com/mcp
Authorization: Bearer <AGENTPMT_BEARER_TOKEN>

If the editor only accepts command-based MCP servers, use the local STDIO fallback below.

Browser-based clients usually store remote connector settings in the UI instead of a local file.

Server URL: https://api.agentpmt.com/mcp
Authentication: Bearer token
Bearer token: <AGENTPMT_BEARER_TOKEN>

Use the client secret field for the Bearer token when one is available. Do not paste the token into public instructions, shared prompts, or browser-visible page content.

Create a new MCP request in Postman and use the hosted endpoint as the request URL:

URL: https://api.agentpmt.com/mcp
Header: Authorization: Bearer <AGENTPMT_BEARER_TOKEN>
Optional header: x-instance-metadata: {"client":"postman","platform":"desktop"}

Connect the request, inspect the loaded tools, run a simple tool call, then verify the call under Control Center -> Agent Activity.

Local STDIO Fallback

Install the local router when your MCP client requires a command. The router does not execute tools locally. It reads AGENTPMT_BEARER_TOKEN, receives JSON-RPC over STDIO, and forwards requests to https://api.agentpmt.com/mcp.

npm install -g @agentpmt/mcp-router
agentpmt-setup

The setup command detects supported clients, asks for the Bearer token, and writes the appropriate config. Re-run agentpmt-setup when you switch agent groups or add another local client.

Platform-Specific Local Config Examples

Use these blocks only for clients that need a local command. Keep AGENTPMT_BEARER_TOKEN in the config file or the client secret store. X_INSTANCE_METADATA is optional and must be a JSON string.

Config files:

Windows: %APPDATA%\Claude\claude_desktop_config.json
macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
Linux: ~/.config/Claude/claude_desktop_config.json

{
  "mcpServers": {
    "agentpmt": {
      "command": "npx",
      "args": ["--package=@agentpmt/mcp-router@latest", "agentpmt-router"],
      "env": {
        "AGENTPMT_BEARER_TOKEN": "<AGENTPMT_BEARER_TOKEN>",
        "X_INSTANCE_METADATA": "{\"client\":\"claude_desktop\",\"platform\":\"desktop\"}"
      }
    }
  }
}

Use the command-based MCP config when your Claude Code build does not expose hosted Streamable HTTPS settings.

{
  "mcpServers": {
    "agentpmt": {
      "command": "npx",
      "args": ["--package=@agentpmt/mcp-router@latest", "agentpmt-router"],
      "env": {
        "AGENTPMT_BEARER_TOKEN": "<AGENTPMT_BEARER_TOKEN>",
        "X_INSTANCE_METADATA": "{\"client\":\"claude_code\",\"platform\":\"cli\"}"
      }
    }
  }
}

Config file: ~/.cursor/mcp.json

{
  "mcpServers": {
    "agentpmt": {
      "command": "npx",
      "args": ["--package=@agentpmt/mcp-router@latest", "agentpmt-router"],
      "env": {
        "AGENTPMT_BEARER_TOKEN": "<AGENTPMT_BEARER_TOKEN>",
        "X_INSTANCE_METADATA": "{\"client\":\"cursor\",\"platform\":\"desktop\"}"
      }
    }
  }
}

After saving, open Cursor Settings -> Features -> MCP and refresh servers.

Config files:

Windows: %APPDATA%\Code\User\mcp.json
macOS: ~/Library/Application Support/Code/User/mcp.json
Linux: ~/.config/Code/User/mcp.json

{
  "mcpServers": {
    "agentpmt": {
      "command": "npx",
      "args": ["--package=@agentpmt/mcp-router@latest", "agentpmt-router"],
      "env": {
        "AGENTPMT_BEARER_TOKEN": "<AGENTPMT_BEARER_TOKEN>",
        "X_INSTANCE_METADATA": "{\"client\":\"vscode\",\"platform\":\"desktop\"}"
      }
    }
  }
}

Config file: ~/.codeium/windsurf/mcp_config.json

{
  "mcpServers": {
    "agentpmt": {
      "command": "npx",
      "args": ["--package=@agentpmt/mcp-router@latest", "agentpmt-router"],
      "env": {
        "AGENTPMT_BEARER_TOKEN": "<AGENTPMT_BEARER_TOKEN>",
        "X_INSTANCE_METADATA": "{\"client\":\"windsurf\",\"platform\":\"desktop\"}"
      }
    }
  }
}

Config files:

Windows: %APPDATA%\Zed\settings.json
macOS/Linux: ~/.config/zed/settings.json

{
  "context_servers": {
    "agentpmt": {
      "settings": {},
      "command": {
        "path": "npx",
        "args": ["--package=@agentpmt/mcp-router@latest", "agentpmt-router"],
        "env": {
          "AGENTPMT_BEARER_TOKEN": "<AGENTPMT_BEARER_TOKEN>",
          "X_INSTANCE_METADATA": "{\"client\":\"zed\",\"platform\":\"desktop\"}"
        }
      }
    }
  }
}

Config file: ~/.codex/config.toml

[mcp_servers.agentpmt]
command = "npx"
args = ["--package=@agentpmt/mcp-router@latest", "agentpmt-router"]

[mcp_servers.agentpmt.env]
AGENTPMT_BEARER_TOKEN = "<AGENTPMT_BEARER_TOKEN>"
X_INSTANCE_METADATA = '{"client":"codex","platform":"cli"}'

Config file: ~/.gemini/settings.json

{
  "mcpServers": {
    "agentpmt": {
      "command": "npx",
      "args": ["--package=@agentpmt/mcp-router@latest", "agentpmt-router"],
      "env": {
        "AGENTPMT_BEARER_TOKEN": "<AGENTPMT_BEARER_TOKEN>",
        "X_INSTANCE_METADATA": "{\"client\":\"gemini\",\"platform\":\"cli\"}"
      }
    }
  }
}

Browser-Based Clients

Use the hosted endpoint for browser clients that support remote MCP connectors. Store the Bearer token in the connector's secret/auth field, not in a chat message.

If the browser client does not support remote MCP, use AgentPMT's direct HTTP API from your own server-side runtime instead of exposing the Bearer token in client-side code.

Postman Testing

Postman is useful for verifying an agent group before you rely on an agent prompt.

Create an MCP request

Choose Postman's MCP request type and set the URL to https://api.agentpmt.com/mcp.

Add auth and metadata

Add Authorization: Bearer <AGENTPMT_BEARER_TOKEN>. Optionally add x-instance-metadata: {"client":"postman","platform":"desktop"}.

Connect and run a tool

Connect, choose one of the loaded tools, fill in the displayed parameters, and run the request.

Verify activity

Open Control Center -> Agent Activity and confirm the request, response, status, and metadata are logged.

Troubleshooting

Symptom	Check
No tools appear	Confirm the Bearer token belongs to the agent group you configured and that tools are added to that group.
`401` or auth failure	Re-copy the Bearer token, remove extra whitespace, and check whether the token was rotated.
Client rejects hosted config	Use the local STDIO fallback; that client likely requires a command-based MCP server.
Tool is listed but fails	Bind any required credentials on the Agent Group and review the tool's current schema.
Activity log is missing metadata	Confirm the client supports custom headers for hosted MCP or `X_INSTANCE_METADATA` for the local router.

Discovery and Protocol Reference

MCP Endpoint

https://api.agentpmt.com/mcp

Native MCP Methods

These protocol methods are natively available for authenticated MCP clients.

Native MCP methods
Method	What it does
initialize	Negotiates MCP protocol capabilities and starts a session.
notifications/initialized	Confirms client initialization after a successful initialize call.
tools/list	Returns the currently available native tool set for the authenticated context.
tools/call	Invokes a selected native tool by name with tool-specific arguments.

Method: initialize
What it does: Negotiates MCP protocol capabilities and starts a session.

Method: notifications/initialized
What it does: Confirms client initialization after a successful initialize call.

Method: tools/list
What it does: Returns the currently available native tool set for the authenticated context.

Method: tools/call
What it does: Invokes a selected native tool by name with tool-specific arguments.

Fetch Native Tools And Call Them

Use tools/list to see your current native MCP tools, then call one with tools/call.

1) Initialize

curl -X POST "https://api.agentpmt.com/mcp" \
  -H "Authorization: Bearer <oauth_access_token>" \
  -H "Content-Type: application/json" \
  -d '{
  "jsonrpc": "2.0",
  "id": 1,
  "method": "initialize",
  "params": {
    "protocolVersion": "2025-03-26",
    "clientInfo": {
      "name": "agentpmt-docs-example-client",
      "version": "1.0.0"
    },
    "capabilities": {
      "tools": {}
    }
  }
}'

2) List current native tools

curl -X POST "https://api.agentpmt.com/mcp" \
  -H "Authorization: Bearer <oauth_access_token>" \
  -H "Content-Type: application/json" \
  -d '{
  "jsonrpc": "2.0",
  "id": 1,
  "method": "tools/list",
  "params": {}
}'

3) Call a tool returned by tools/list

curl -X POST "https://api.agentpmt.com/mcp" \
  -H "Authorization: Bearer <oauth_access_token>" \
  -H "Content-Type: application/json" \
  -d '{
  "jsonrpc": "2.0",
  "id": 1,
  "method": "tools/call",
  "params": {
    "name": "<tool_name_from_tools_list>",
    "arguments": {
      "example_input": "value"
    }
  }
}'

Get More Tools

Discover additional tools from the external catalog, then invoke them. After enabling tools, reconnect MCP and run tools/list again to refresh your native list.

1) Browse available external tools

curl -X GET "https://www.agentpmt.com/api/external/tools?limit=20"

2) Create an auth session for wallet signing

curl -X POST "https://www.agentpmt.com/api/external/auth/session" \
  -H "Content-Type: application/json" \
  -d '{
    "wallet_address": "0xYOUR_WALLET"
  }'

3) Invoke a selected tool

curl -X POST "https://www.agentpmt.com/api/external/tools/{productSlug}/actions/{actionSlug}/invoke" \
  -H "Content-Type: application/json" \
  -d '{
    "wallet_address": "0xYOUR_WALLET",
    "session_nonce": "<session_nonce>",
    "request_id": "<unique_request_id>",
    "signature": "0x<wallet_signature>",
    "parameters": {
      "example": "value"
    }
  }'

Well-Known Discovery URLs

https://api.agentpmt.com/.well-known/oauth-authorization-server
https://api.agentpmt.com/.well-known/oauth-protected-resource
https://api.agentpmt.com/.well-known/openai-apps-challenge
https://api.agentpmt.com/.well-known/openid-configuration
https://www.agentpmt.com/.well-known/agent-card.json
https://www.agentpmt.com/.well-known/agent.json
https://www.agentpmt.com/.well-known/mcp
https://www.agentpmt.com/.well-known/mcp/server-card.json
https://www.agentpmt.com/.well-known/mcp/server.json

OAuth

https://api.agentpmt.com/oauth/authorize
https://api.agentpmt.com/oauth/jwks.json
https://api.agentpmt.com/oauth/register
https://api.agentpmt.com/oauth/token

Raw Bearer-token API callers should use Programmatic Access. Wallet-authenticated autonomous agents should use the Autonomous Agents API. Agents paying for one eligible tool action with direct x402 should use X402 Payments For Tool Usage.

API To MCP Tool Conversion

Create a private Connected API tool, authorize it for an Agent Group, and call it over MCP.

Build it yourself, or hire AgentPMT to build it with you.
